3 Axis Cnc Pattern Making Machine Wooden Thermocol

1500000.00 INR/Piece

Get a Price/Quote

Product Details:

Product Type cnc
Material Other
Type CNC Router Horizontal
Weight (kg) 1500 Kilograms (kg)
Computerized Yes
Automatic Yes
PLC Control Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

3 Axis Cnc Pattern Making Machine Wooden Thermocol Price And Quantity

Minimum Order Quantity 1 Piece
Price 1500000.00 INR/Piece

3 Axis Cnc Pattern Making Machine Wooden Thermocol Product Specifications

Voltage 440/220 Volt (v)
Bar Feeder Yes
Motor AC Motor
Dimension (L*W*H) CUSTOMIZE Foot (ft)
Power Source Electric
Weight (kg) 1500 Kilograms (kg)
Computerized Yes
Table Size customize
Product Type cnc
Automatic Yes
Rigidity High
PLC Control Yes
Warranty 1
Type CNC Router Horizontal
Color White
Feature Low Energy Consumption High Speed High Precision
Spindle Speed 24000/18000 RPM
Material Other

3 Axis Cnc Pattern Making Machine Wooden Thermocol Trade Information

FOB Port ex factory
Payment Terms Cash in Advance (CID)
Supply Ability 20 Piece Per Month
Delivery Time 30 Months
Main Export Market(s) Australia North America South America Eastern Europe Western Europe Middle East Africa Central America Asia
Main Domestic Market All India

Product Description

3 Axis Cnc Pattern Making Machine Wooden Thermocol

Being a highly effective, lean and fast-moving organization, we are highly instrumental in providing an extensive array of 3/4 Axis Pattern Work CNC Router Machine. These engravers are specialized in creating 3D images on the variety of materials. This technology has opened a new approach for artwork to be displayed on different items like wood, acrylics etc. Apart from this, these engravers are manufactured using premium quality components and sophisticated technology.

Features:

Less Maintenance
Easy to handle
Easy to carry at different locations

Product details

Axis Drivers	Stepper Motor With Drivers / Servo Motor With Drivers
Automation Grade	Fully Automatic
Warranty	1 year
Max Job Size	6MTR*4MTR
Power	3PHASE
Spindle Power	6KW BT40 7.5 KW WATER COOLED
Operation Mode	Automatic
Condition	New
Model Number	MTR1835S
Voltage	380 V
Machine Type	AUTOMATIC
Control System	DSP
Brand	MAHEER
Phase Type	Single
Job Material	Wood
Country of Origin	Made in India
Maximum Traverse Rate	15000 mm / Min
Axis Travel	1800 mm x 3500 mm x 800 mm (X axis x Y axis x Z axis)
Axis Sliders	PMI / Hiwin Linear Motion Guide
Axis Motion Transmission	X Axis-Rack and Pinion (YYC Taiwan),Y Axis- Rack And Pinion (YYC Taiwan),Z Axis- Ball Screw

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'CNC Pattern Router' category

Cnc Wooden Pattern Making Machine Price : 1700000.00 INR/Piece Minimum Order Quantity : 1 Automatic : Yes Product Type : cnc Table Size : customize Color : White Type : Horizontal, Other, CNC Router Warranty : 1 Feature : Low Energy Consumption, High Speed, High Precision Material : Other Spindle Speed : 24000/18000 RPM Voltage : 440/220 Volt (v) Dimension (L*W*H) : CUSTOMIZE Foot (ft) Motor : AC Motor Weight (kg) : 3000 Kilograms (kg) Power Source : Electric Computerized : Yes Rigidity : High PLC Control : Yes

Send Inquiry

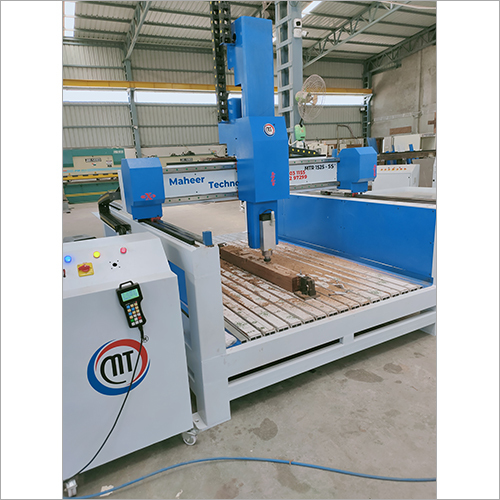

Cnc Wooden Pattern Machine Price : 1700000.00 INR/Piece Minimum Order Quantity : 1 Automatic : Yes Product Type : cnc Table Size : customize Color : White Type : Horizontal, Other, CNC Router Warranty : 1 Feature : High Speed, High Precision Material : Other Spindle Speed : 24000/18000 RPM Voltage : 440/220 Volt (v) Dimension (L*W*H) : CUSTOMIZE Foot (ft) Motor : AC Motor Weight (kg) : 2000 Kilograms (kg) Power Source : Electric Computerized : Yes Rigidity : High PLC Control : Yes

Send Inquiry

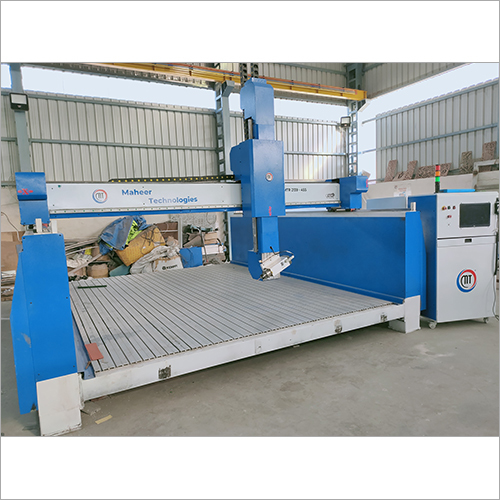

Cnc Pattern Making Machine 4 Axis Price : 2200000.00 INR/Piece Minimum Order Quantity : 1 Automatic : Yes Product Type : cnc Table Size : customize Color : White Type : Horizontal, Other, CNC Router Warranty : 1 Feature : Low Energy Consumption, High Speed, High Precision Material : Other Spindle Speed : 24000/18000 RPM Voltage : 440/220 Volt (v) Dimension (L*W*H) : CUSTOMIZE Foot (ft) Motor : AC Motor Weight (kg) : 3000 Kilograms (kg) Power Source : Electric Computerized : Yes Rigidity : High PLC Control : Yes

Send Inquiry

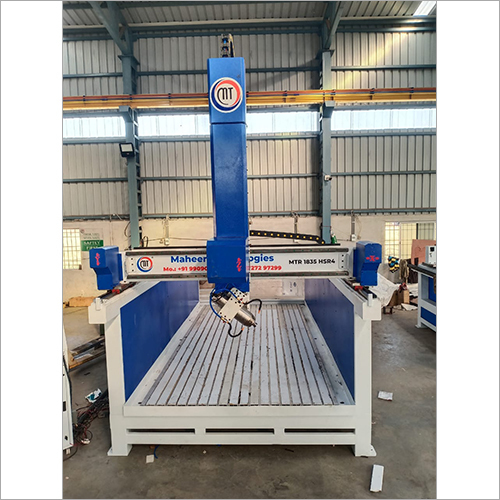

Cnc Aluminium Pattern Making Machine 4 Axis Price : 2200000.00 INR/Piece Minimum Order Quantity : 1 Automatic : Yes Product Type : cnc Table Size : customize Color : White Type : Horizontal, CNC Router, Other Warranty : 1 Feature : High Speed, High Precision, Low Energy Consumption Material : Aluminum Spindle Speed : 24000/18000 RPM Voltage : 440/220 Volt (v) Dimension (L*W*H) : CUSTOMIZE Foot (ft) Motor : AC Motor Weight (kg) : 4000 Kilograms (kg) Power Source : Electric Computerized : Yes
